A Tree Shear is the perfect tool for utility tree clearance, sensitive thinning, biomass harvesting and the controlled felling of trees for road, rail or development site clearance.

| Model | Unit | TS200 | TS250 | TS350 | TS380 | ||||||||||||||||||||||||||||||||
| Carrier Weight | ton | 1.8-5 | 6-9 | 12-17 | 18-28 | ||||||||||||||||||||||||||||||||
| Max Opening | mm | 535 | 585 | 825 | 1050 | ||||||||||||||||||||||||||||||||
| Blade Thickness | mm | 18 | 20 | 28 | 28 | ||||||||||||||||||||||||||||||||
| Cut Diameter (MAX) | mm | 50 | 100 | 150-200 | 200-400 | ||||||||||||||||||||||||||||||||
| Weight | kg | 205 | 365 | 870 | 1130 | ||||||||||||||||||||||||||||||||
| Rotating Type | Option | 360 ° Hydraulic Rotation | |||||||||||||||||||||||||||||||||||

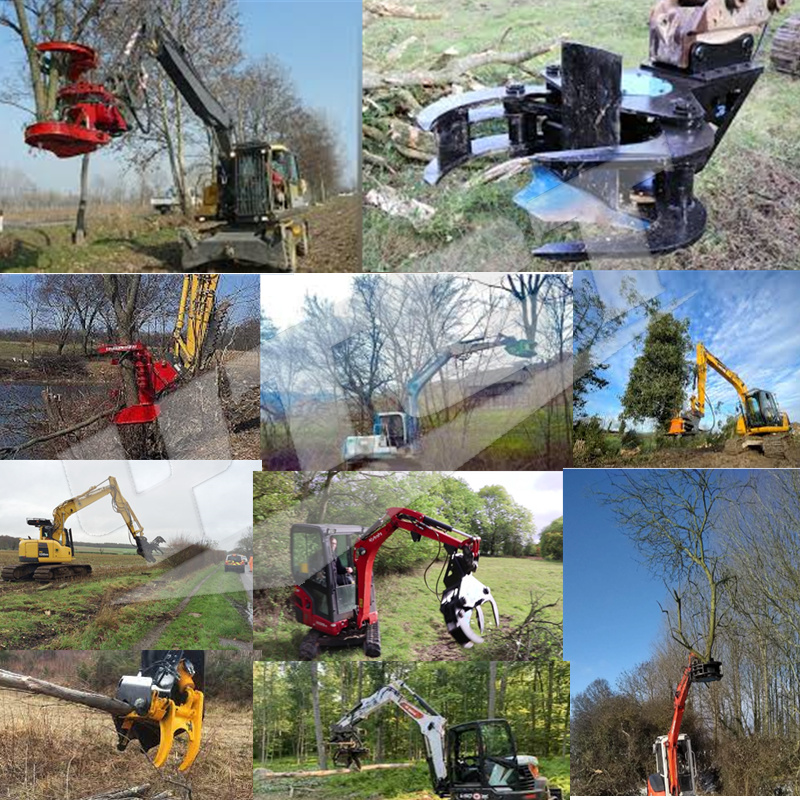

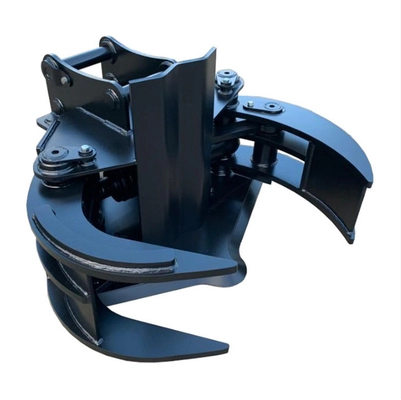

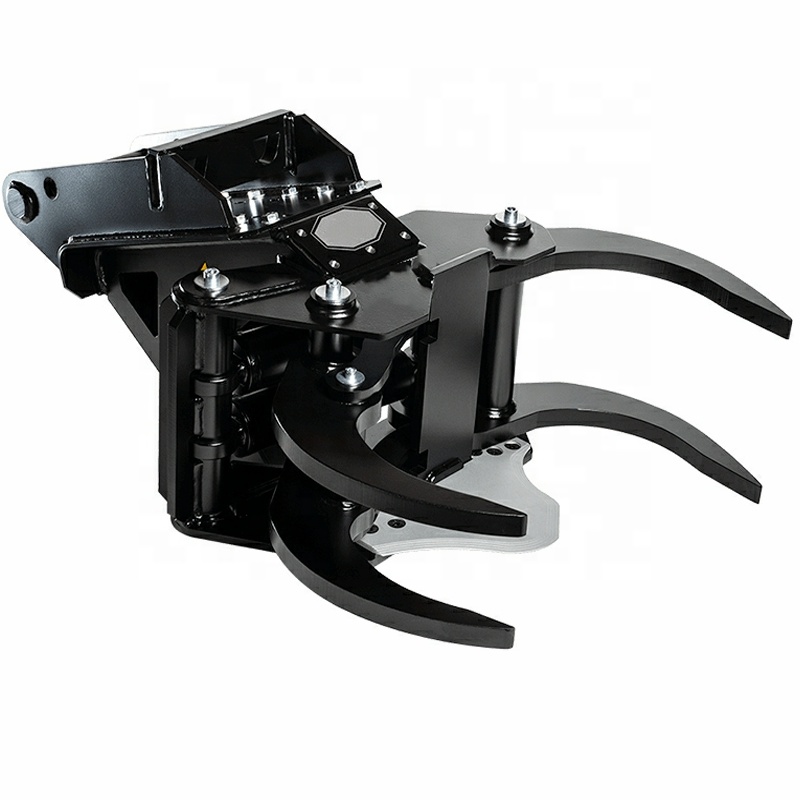

YTCT excavator tree shear is professional work tools and are primarily available for use on any excavator between 4 and 30 ton, as well as being adaptable to fit skid steers. The tree shear attachment tree lopper is becoming increasingly used in many forestry applications due to the time and money saving advantages it offers.

It is a single service attachment that works off your existing double acting hammer circuit. With one powerful hydraulic ram, this excavator tree shear is forgiving to imprecise alignment of the blade by the operator and consequently facilitates faster cutting.
YTCT yantai chengtai excavator tree shear is one of the easiest tree shears to use on the market, with quick and easy alignment and a simple grab-to-cut action, the cutting cycle is rapid. Fitted with a bolt-on Hardox HB500 blade for an extra sharp cut with extended durability, this tree shear can cut through hardwoods of up to 200-350 mm in one motion.
The simple cutting cycle involves:
1) Opening the grab,
2) Lining up a tree,
3) Pushing the blade in to the tree whilst closing the grab
4) Placing the cut tree down to one side
